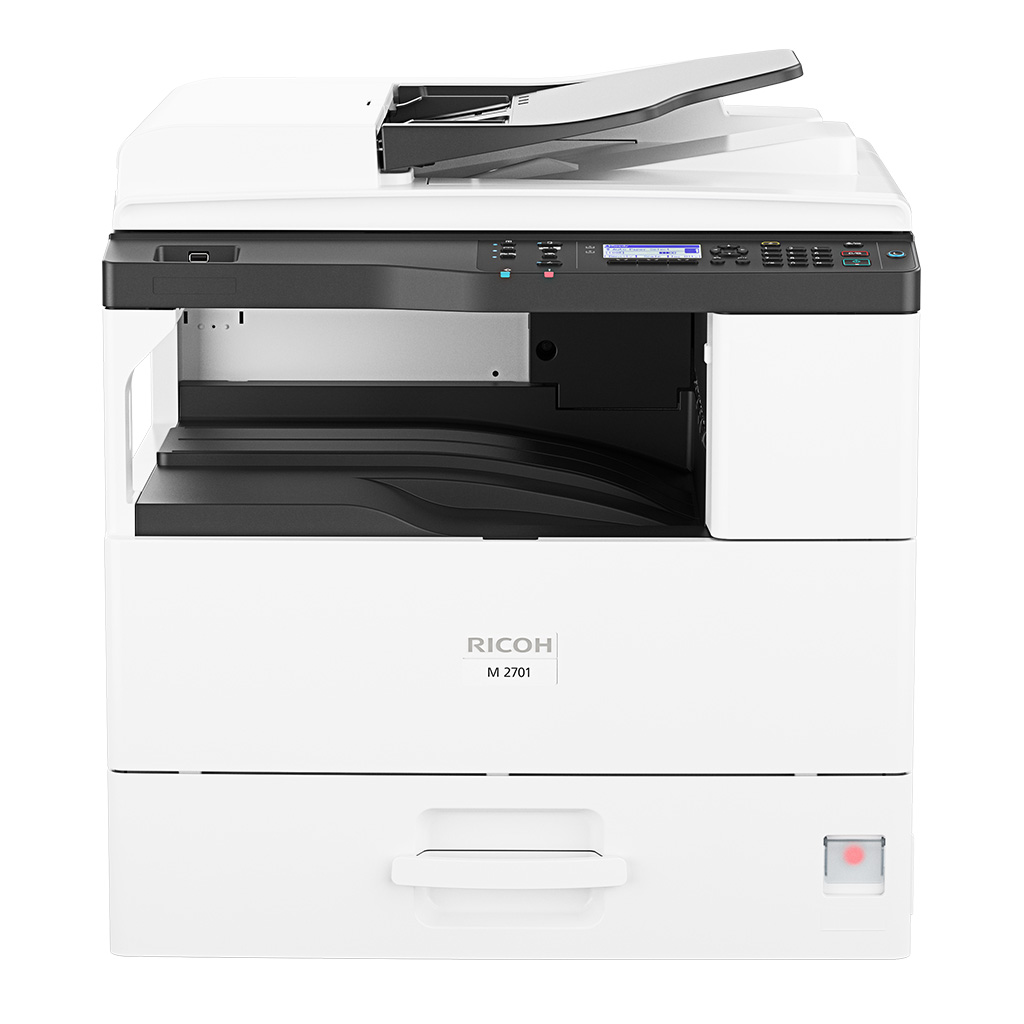

M 2701 A3 black and white MFP

  • Copy, print, scan
  • Prints up to 27 ppm
  • AirPrint® and Mopria® printing
  • ARDF as standard
Configure your device here
Link List
    Realistically affordable
    The high performance A3 mono multifunction printer to empower your workplace

    High performance A3 mono multifunction printer to empower your workplace

    RICOH M 2701 comes with improved functionalities that make it more productive, convenient to connect, and easier to maintain. Some of the main features include a faster 27 pages per minute (ppm) print speed, 512 MB memory, and a 500-sheet standard paper tray, which enable the devices to handle larger and more complex print jobs in a shorter amount of time.

    1. Easy setup and maintenance
      Preassembled PCDU simplifies the process of setting up the device without requiring the support of a technician.
    2. Improved usability and productivity
      Maximum 1,600-sheet paper input capacity enables longer uninterrupted printing.
    3. Security in our DNA
      Document confidentiality can be maintained by suspending print jobs, and only be released when authentication is done at the device.
    4. Connectivity options
      Support Mopria® and Apple AirPrint® which easily and seamlessly print from, or scan to, Android and iOS mobile device.
    Download PDF brochure

    Specifications

    Functions
    Copy, print, scan
    Colour
    No
    HDD
    Not available
    Memory - standard
    512 MB
    Operation panel
    4-line LCD
    Physical dimensions (WxDxH)—mainframe
    587 x 581 x 639 mm
    Weight—mainframe
    39 kg or less
    Standard input capacity (sheets)
    600
    Maximum input capacity (sheets)
    1,600
    Standard output capacity (sheets)
    250
    Maximum output capacity (sheets)
    250
    Paper input configuration - standard
    500-sheet paper input tray, 100-sheet bypass tray, 50-sheet ARDF
    Paper output configuration - standard
    250-sheet output tray
    Supported media

    Standard paper input tray
    Thin paper, plain paper 1, plain paper 2, recycled, colour paper, special paper, middle thick paper, prepunched paper, letterhead, bond paper, cardstock

    Bypass tray
    Thin paper, plain paper 1, plain paper 2, recycled, colour paper, special paper, middle thick paper, prepunched paper, letterhead, bond paper, cardstock, thick paper 1, thick paper 2, label paper, OHP, envelope

    Paper banks
    Plain paper 1, plain paper 2, recycled, colour paper, special paper, middle thick paper, prepunched paper, letterhead, bond paper, cardstock

    Note: Thick paper and OHP are only supported from the bypass tray.
    Maximum paper size
    A3
    Media weight (g/m2)
    52–216
    Interfaces - standard
    10Base-T/100Base-Tx/1000Base-T (Gigabit Ethernet)
    USB 2.0 Type B
    Interfaces - optional
    IEEE 802.11a/b/g/n/ac (Wireless LAN)
    Network protocols - standard
    TCP/IP
    Copy speed
    27 cpm
    First copy time
    6.5 seconds or less—via platen
    12 seconds or less—via ARDF
    Copy resolution
    100 x 100 dpi,150 x 150 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 600 x 600 dpi
    Zoom range
    25%–400%
    Enlargement ratios
    115%, 122%, 141%, 200%, 400%
    Reduction ratios
    93%, 82%, 71%, 50%, 25%
    Duplex copy
    Standard
    Book copy
    Not available
    ID card copy
    Supported
    Print speed black and white
    27 ppm
    First print time
    6.5 seconds or less
    Print resolution
    600 x 600 dpi
    Page description languages (PDLs)
    GDI
    Printer drivers
    DDST
    Duplex printing
    Standard
    Mobile printing
    AirPrint, Mopria®
    Scan speed
    18 ipm—black and white
    14 ipm—black and white with TWAIN
    6 ipm—colour
    Scan methods
    Scan to email, Scan to folder (SMB), Scan to USB/SD
    Colour scanning
    Standard
    Scan resolution
    100 x 100 dpi, 150 x 150 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 600 x 600 dpi
    Scan to file types

    Black and white
    Single- and multi-page PDF
    Single- and multi-page TIFF

    Colour
    Single- and multi-page PDF
    Single-page JPEG

    Scan to email

    Protocols
    SMTP gateway, TCP/IP

    Authentication
    SMTP authentication, POP before SMTP authentication

    Scan resolution
    100 dpi, 150 dpi, 200 dpi (default), 300 dpi, 600 dpi

    Scan to email file types
    True colour, greyscale
    JPEG, PDF

    Black and white
    TIFF, PDF

    Scan to folder

    Protocols
    SMB

    Security
    LANMan 1.0, NTLM v1/v2, GSS API

    Resolution
    100 dpi, 150 dpi, 200 dpi (default), 300 dpi, 600 dpi

    Search for client folders
    By name and ID

    Scan to folder file types
    True colour, greyscale
    JPEG, PDF

    Black and white
    TIFF, PDF

    TWAIN scanning

    Scan resolution
    75 dpi, 100 dpi, 150 dpi, 200 dpi, 300 dpi, 600 dpi

    Scan mode
    True colour, greyscale, black and white

    Authentication
    Wireless LAN security (WEP, WPA)
    Windows

    Windows Server 2008
    Windows Server 2008 R2
    Windows Vista
    Windows 7
    Windows Server 2012
    Windows Server 2012 R2
    Windows 8.1
    Windows 10
    Windows 2016

    Standard

    Web Image Monitor

    Power source
    220–240 V, 50/60 Hz, 8 A
    Power consumption
    1,480 W—maximum operating
    420 W—printing
    93 W—Ready Mode
    23 W—Low Power Mode
    0.97 W—Energy Saver Mode (Sleep Mode)
    19 W or less—ARDF
    Typical Electricity Consumption (TEC)
    1,180 Wh
    Warm-up time
    19 seconds or less
    Power saving mode
    30 minutes—Low Power Mode (default)
    58 minutes—Energy Saver Mode (Sleep Mode) (default)
    Recovery time
    10 seconds or less—Low Power Mode
    13 seconds or less—Energy Saver Mode (Sleep Mode)
