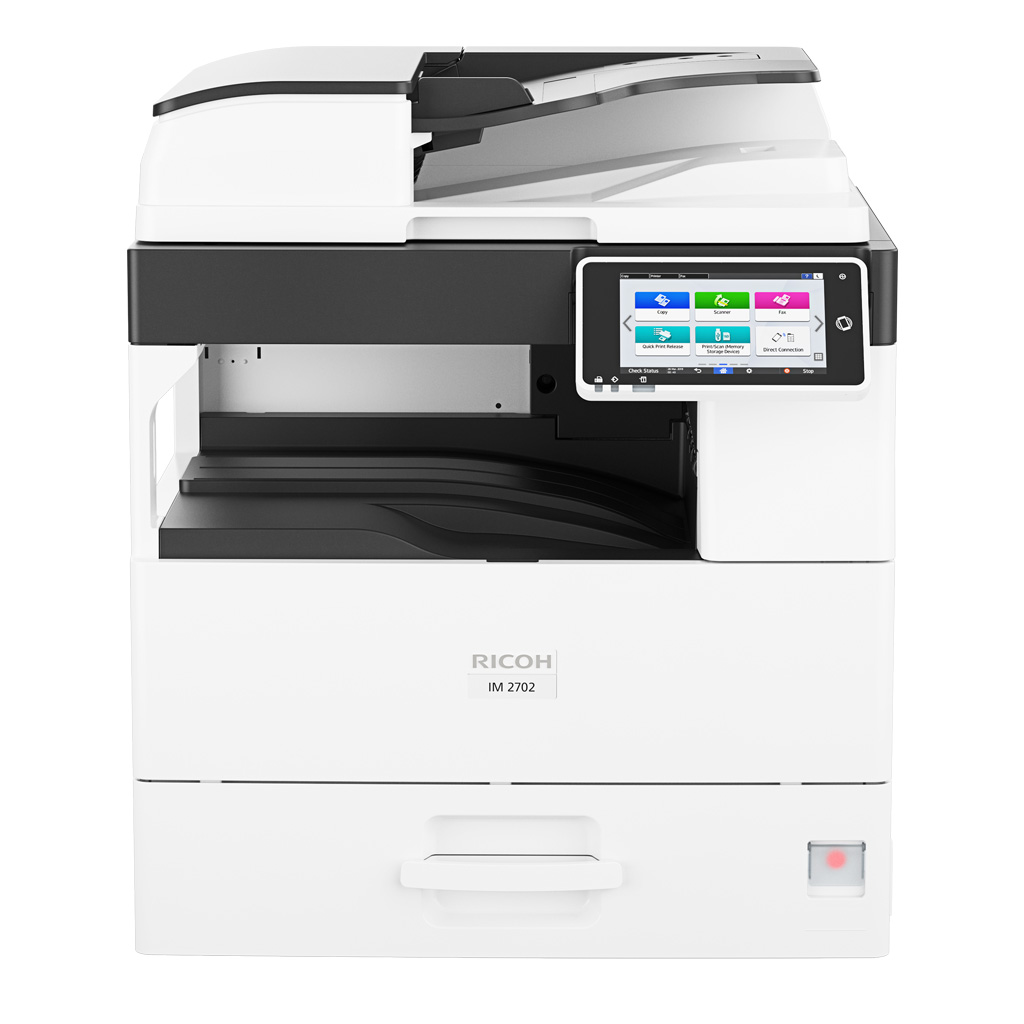

IM 2702 A3 black and white MFP

Copy, print, scan, optional fax
Prints up to 27 ppm
7" Smart Operation Panel
Mobile printing

Link List

M 2701

Realistically affordable

The new intelligent A3 mono multifunction printer to empower your workplace

RICOH IM 2702 is a budget friendly device that comes with a host of improved features, making it easier to use and connect to, while at the same time increase productivity. It offers a fast print speed at 27 pages per minute, larger standard paper tray, as well as a new generation 7” Smart Operation Panel.

Easy setup and maintenance
Preassembled PCDU simplifies the process of setting up the device without requiring the support of a technician
Smart operation
Print or scan documents easily from mobile devices via the Ricoh Smart Device Connector app
Solutions friendly
Support for cloud workflow applications which connect the device to external cloud services and third-party apps via the RICOH Smart Integration platform
Security in our DNA
Document confidentiality can be maintained by suspending print jobs, and only be released when authentication is done at the device

Download PDF brochure

Specifications

Functions: Copy, print, scan, optional fax
Colour: No
Storage: Not available
Memory - standard: 2 GB
Operation panel: 7" colour touch operation panel

Physical dimensions (WxDxH)—mainframe: 587 x 581 x 677 mm—depth including the input tray
Weight—mainframe: 46.5 kg or less

Standard input capacity (sheets)

600

Maximum input capacity (sheets)

1,600

Standard output capacity (sheets)

250

Maximum output capacity (sheets)

250

Paper input configuration - standard

500-sheet paper input tray, duplex unit, 100-sheet bypass tray, 100-sheet ARDF

Paper output configuration - standard

250-sheet face-down output tray

Supported media

Standard paper input tray
Thin paper, Plain paper 1, Plain paper 2, Recycled, Colour Paper, Special paper, Middle thick paper, Printed paper, Preprinted paper, Prepunched paper, Letterhead, Bond paper, Cardstock

Bypass tray
Thin paper, Plain paper 1, Plain paper 2, Recycled, Colour paper, Special paper, Middle thick paper, Printed paper, Preprinted paper, Prepunched paper, Letterhead, Bond paper, Cardstock, Thick paper 1, Thick paper 2, Label paper, OHP, Envelope

Optional paper banks
Plain paper 1, Plain paper 2, Recycled, Colour paper, Special paper, Middle thick paper, Printed paper, Preprinted paper, Prepunched paper, Letterhead, Bond paper, Cardstock

Maximum paper size

Media weight (g/m2)

52–216

Interfaces - standard

Mainframe
10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet)
IEEE802.11a/b/g/n (Wireless LAN)
USB2.0-Device (Type-B)
USB2.0-Host

Smart Operation Panel
IEEE 802.11 ac/a/b/g/n (Wireless LAN)
Bluetooth 4.2
SD card slot—SDHC memory card
USB Host Type A—for USB Flash memory
USB Host Type A—1 port for USB keyboard, card reader, or camera
USB Host Type mini B—for NFC card reader
microSD card slot—for service engineer access
NFC tag

Network protocols - standard

TCP/IP

Copy speed: 27 cpm
First copy time: 6.5 seconds or less
Copy resolution: 300 x 600 dpi (default), 600 x 600 dpi
Zoom range: 25–400%
Enlargement ratios: 115%, 122%, 141%, 200%, 400%
Reduction ratios: 93%, 82%, 71%, 50%, 25%
Duplex copy: Standard
Book copy: Not supported
ID card copy: Supported

Print speed black and white: 27 ppm
First print time: 6.5 seconds or less
Print resolution: 600 x 600 dpi
Page description languages (PDLs): Standard
PCL 5e, PCL 6, PostScript 3
Printer drivers: Standard
PCL 5e, PCL 6, PostScript 3 emulation
Duplex printing: Standard
Mobile printing: AirPrint, Mopria®
Print from USB/SD: Supported

Scan speed

50 ipm

Scan methods

Scan to email, Scan to folder (SMB), Scan to URL, Scan to PDF/A, Scan to digitally signed PDF, Scan to USB/SD

Colour scanning

Standard

Scan resolution

100 x 100 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi, 1,200 x 1,200 dpi

Scan to file types

Single- and multi-page TIFF
Single- and multi-page PDF
Single-page JPEG (greyscale)
Single- and multi-page high compression PDF

Scan to email

Protocols
SMTP gateway, POP

Authentication
SMTP authentication, POP before SMTP authentication

Scan resolution
100 x 100 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi

Scan to email file types
JPEG, PDF—true colour, greyscale
TIFF, PDF—black and white

Scan to folder

Protocols
SMB

Security
LanMan1.0, NTLMv1/v2, GSS API

Resolution
100 x 100 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi

Search for client folders
By name and ID

Scan to file types
JPEG, PDF—True colour, greyscale
TIFF, PDF—black and white

TWAIN scanning

Scan mode
True colour, greyscale, black and white

Scan resolution
100–1,200 dpi
Note: 1,200 dpi scanning is supported only for A5 and smaller paper size.

Fax types: G3 fax, LAN-Fax—optional
Fax circuit: PSTN
Fax compatibilty: ITU-T (CCITT), G3—maximum 1 line
Fax modem speed: 2,400 bps–33.6 Kbps with automatic shift down
Fax compression methods: MH, MR, MMR
Fax resolution: 200 x 100 dpi—8 x 3.85 lines/mm
200 x 200 dpi—8 x 7.7 lines/mm
G3 fax transmission speed: 3 seconds approximately—ITU-T No. 1 chart, TTI off, MFT off
Fax SAF memory capacity: 4 MB
Quick dials: 400 numbers

Encryption: Authentication password
Authentication: User authentication—Windows and LDAP via Kerberos, basic, user code
802.1x wired authentication
Quota setting/Account limit

Windows: PCL 6, PostScript 3
Windows Server 2008
Windows Server 2008 R2
Windows 7
Windows Server 2012
Windows 8.1
Windows Server 2012 R2
Windows 10
Windows Server 2016
Windows Server 2019
Macintosh: OS X Native v10.11 or later—PostScript 3 only
Unix: Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise v4, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—6.1, 7.1, 7.2

Standard: @Remote Embedded
Web Image Monitor
Optional: Card Authentication Package
Device Manager NX
Enhanced Locked Print NX and FlexiServer
GlobalScan NX (from May 2019, firmware upgrade necessary for devices manufactured prior)
Printer Driver Packager NX
Smart Operation Panel Designer v1.43 or newer

Power source: 220–240 V, 50/60 Hz, 8 Amps
Power consumption: 1,550 W or less—mainframe, maximum power
500 W or less—printing
113 W or less—Ready Mode
55 W or less—Low Power Mode
1 W or less—Energy Saver Mode (Sleep Mode)
Typical Electricity Consumption (TEC): 1,309 Wh
Warm-up time: 25 seconds—Quick Mode
65 seconds—Normal Mode
Power saving mode: 30 minutes shift time—to Low Power Mode
1 minute shift time—to Energy Saver Mode (Sleep Mode)
Recovery time: 10 seconds or less—from Low Power Mode
13 seconds or less—from Energy Saver Mode (Sleep Mode)
Green labels: Blue Angel Mark (BAM)
