RICOH Always Current Technology

Security V2.3 Update

1  Hide characters when typing passwords

Users can choose to hide characters when typing password on the control panel.

This function can be set from the control panel or from the Web Image Monitor.

How to set:

• System Settings] ▶ [System for Administrator] ▶ [Security] ▶ [Show Characters While Entering Password]

Security V2.11 update

How to enable V2.11 security features

Instructions : SMBv3 Extended Functions setting

• Setting in [Device Management] > [Configuration] > [Network] > [SMB] > [SMBv3 Extended Functions] on Web Image Monitor.
• Set [SMBv3 Extended Functions] to [Active] to enable authentication level setting, sending data to a folder in an encrypted server, and transmission via SMBv3.0.2 and SMBv3.1.1.
• In advance, activate [SMBv2/SMBv3] in [SMB].

Instructions : Authentication level setting

• Configure this in [Device Management] > [Configuration] > [Network] > [SMB ] > [Advanced Settings ] > [Authentication Level] using Web Image Monitor.
• When [Level 4: Kerberos Authentication] is selected, you can send scanned data to a computer that belongs to the domain and whose computer name is 15 characters or less.

1  Kerberos Authentication in Scan to Folder

Authentication level for SMB data transmission can be selected on the Web Image Monitor. You can specify Level 4 Kerberos Authentication.

2  SMB encryption by file server

You can use SMB data transmission to an encrypted file server. You can encrypt on per file server basis.

3  SMBv3.1.1 for Windows Authentication

You can use SMB3.1.1 for Windows Authentication and data transmission.

Security V1.2 Update

1 End-to-end print encryption

To protect data from malicious attack and ensure end-to-end security, print data can now be encrypted using TLSv1.2.

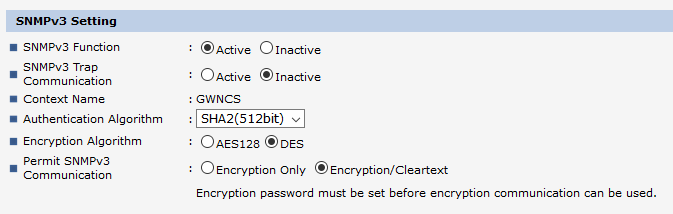

2 SHA2 support on SNMPv3

To meet enhanced government security requirements, SHA2 (224bit/256bit/384bit/512bit) is now available as an authentication algorithm.

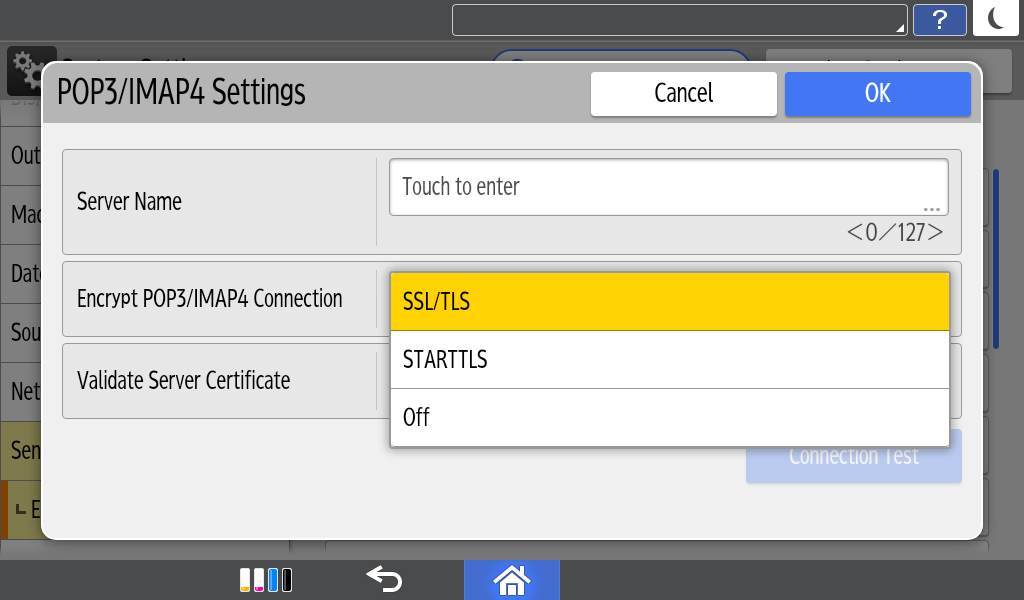

3 Secure internet fax connection

The POP3/IMAP4 encryption has been extended to include SSL/TLS. Customers using internet fax with Office 365 and Gsuite can now apply a secure SSL connection.

4 Batch change security settings

Eliminating the need to change/reinstate security settings manually at multiple individual devices, system administrators can now apply a remote global change to the following settings: user login, password and SNMP v3 account.

5 Batch change network protocols

Eliminating the need to change network protocol settings manually at multiple devices, system administrators can now apply a remote global change to the following settings: encryption strength; WSD (Encrypted Communication of Device) IPv4, NetBIOS over TCP/IPv4, Enable IPP Port 80 IPv4, IPP Port 80 IPv6, WSD (printer) IPv6, WSD (Scanner) IPv6, IPP (Port 631) IPv6, Permit SNMPv3 Communication, IPv4 and IPv6.
