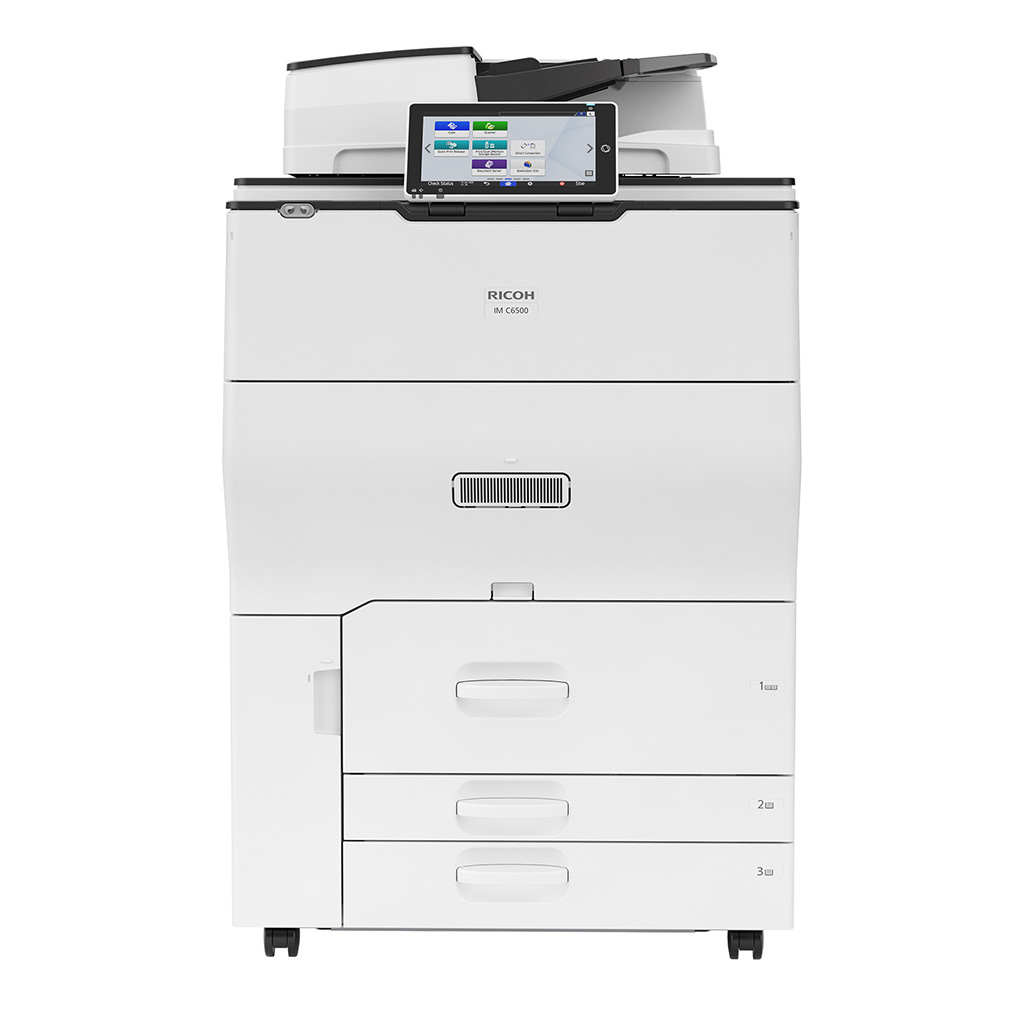

The IM C6500 enables our customers to work smarter and more effectively, providing technology that is scalable, secure, sustainable, and simple to use.
It provides exceptional productivity with high-speed printing, scanning, copying, and optional faxing. It is also highly reliable and robust to meet the needs of high volume general office customers and Central Reprographic Departments (CRDs).
The IM C6500 comes standard with a 10.1” Smart Operation Panel that has improved responsiveness and enhancements for better usability and user comfort.
Customers can choose from multiple finishing options, including multi-folding units, cover interposers, and finishers for professional-looking documents and marketing collateral.
Banner Paper Guide Tray Type M26
Extension arm to hold long sheets (banners) on the bypass tray to prevent them from sliding and falling on the floor.
Dimensions: 484 x 442 x 366 mm Weight: 1.2 kg
Small Paper Feeding Unit Type M37
Optional unit for SPDF to scan small size paper. Used for scanning bank cheques or application slips.
Stack capacity: 44 sheets Original size: 76–105 mm x 148–218 mm Paper weight: 64–128 g/m2 Dimensions (W x D x H): 218 x 173 x 55 mm Weight: 0.19 kg
Page Keeper Type M37
Supports SPDF as a double feed detection unit preventing more than one page from being scanned at a time.

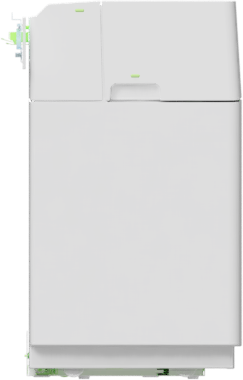

LCIT RT4060
Optional side Large Capacity Input Tray significantly increasing the capacity of the device.
Capacity: 4,400 sheets Paper size: A4 LEF, B5 LEF Paper weight: 52–216 g/m2 Dimensions (W x D x H): 352 x 540 x 625 mm Weight: 21.3 kg or less Power consumption: 50 W or less
Notes:
Cannot be installed with LCIT RT4070

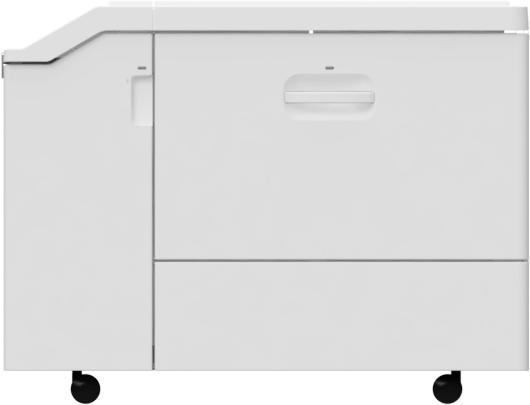

LCIT RT4070
Optional Large Capacity Input Tray significantly increasing the capacity of the device.
Capacity: 2,200 sheets Paper size: A5–13" x 19.2" Custom size: 100–330.2 mm x 139.7–487.7 mm Paper weight: 52.3–300 g/m2 Dimensions (W x D x H): 869 x 730 x 658 mm Weight: 83 kg or less Power consumption: 85 W or less
Notes:
Cannot be installed with LCIT RT4060,8 1/2" x 14" Paper Size Tray Type M2
8 1/2" x 14" Paper Size Tray Type M2
Enables feeding of 8.5" x 14" and 8.5" x 11" SEF, and A4 and B4 SEF paper through an Large Capacity Tray (LCT).
Capacity: 2,750 sheets Paper size: 8.5" x 14" SEF, 8.5" x 11" SEF, A4 SEF, B4 SEF Paper weight: 52.3–216 g/m2 Dimensions (W × D × H): 150 × 541 × 625 mm Weight: 8.4 kg
Notes:
By choosing this option the LCIT RT4060 will be added to the configuration.
Cannot be installed with LCIT RT4070
A3/11"x17" Tray Unit Type M26
Converts the standard paper input tray from a tandem A4 tray to an A3 tray.
Capacity: 1,000 sheets Paper size: A5–A3, B5–B4 Dimensions (W x D x H): 520 x 514 x 207 mm Weight: 11 kg or less
Tab Sheet Holder M2
Recommended to be used when loading tab stock in the paper trays. Note: Can be used in either Tray 2 or Tray 3, but not both.

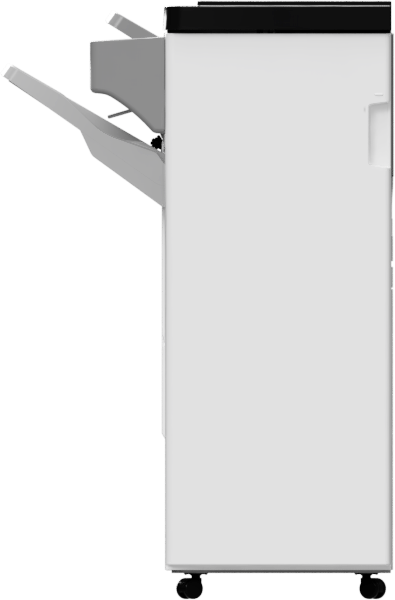

Finisher SR4150
Provides multi-position stapling and optional hole punching.
Capacity: 3,000 sheets Paper size: B6–A3, SRA3 Custom paper size: 90 x 139.7 mm–330.2 x 487.7 mm Paper weight: 52–360 g/m2 Staple capacity: 65 sheets Staple positions: Top, bottom, 2 staples, top slant Staple paper weight: 52–105 g/m2 Optional punch unit PU3090 available Dimensions (W x D x H): 657 x 730 x 980 mm Weight: 38 kg or less; 41 kg or less with punch unit Power consumption: 67 W
Notes:
Cannot be installed with Booklet Finisher SR4160,Finisher SR4140,Copy Tray Type M42,Cover Interposer Tray CI4050,Punch Unit PU5050 NA,Punch Unit PU5050 EU,Punch Unit PU5050 SC,Cooling Fan Unit Type M31

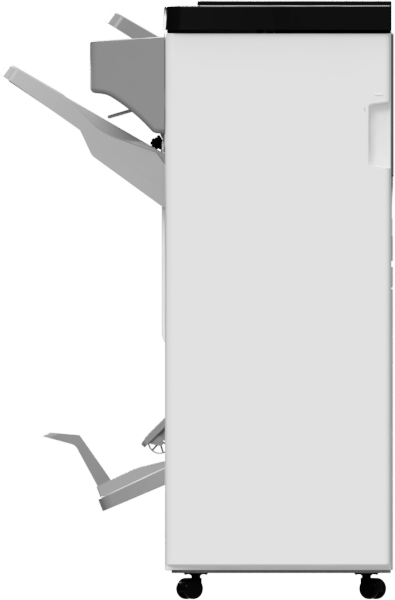

Booklet Finisher SR4160
Allows documents to be professionally finished as saddle-stitched booklets. Provides three destinations for output, and offers optional hole punching. Ideal for the production of program guides, instruction sheets, newsletters, and meeting agendas.
Capacity: 2,000 sheets Paper size: A3–A5, B6, A6, SRA3 Custom size: 90 x 139.7 mm–330.2 x 487.7 mm Paper weight: 52–220 g/m2—proof tray; 52–360 g/m2—shift tray Staple capacity: 65 sheets (normal staple)—same and mixed size; 20 sheets (saddle stitch staple) Staple paper weight: 52–105 g/m2 (normal staple); 64–105 g/m2 (saddle stitch staple) Staple positions: Top, bottom, 2 staple, top slant, bottom slant, booklet Optional punch unit PU3090 available Dimensions (W x D x H): 657 x 730 x 980 mm Weight: 58 kg or less; 61 kg or less with punch unit Power consumption: 67 W
Notes:
Cannot be installed with Finisher SR4150,Finisher SR4140,Copy Tray Type M42,Cover Interposer Tray CI4050,Punch Unit PU5050 NA,Punch Unit PU5050 EU,Punch Unit PU5050 SC,Cooling Fan Unit Type M31

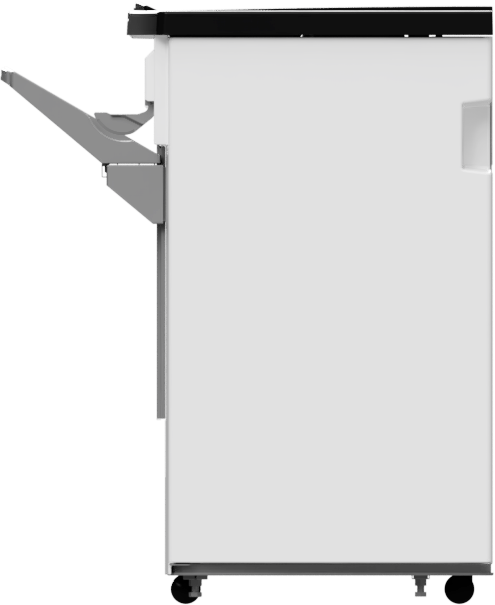

Finisher SR4140
Provides multi-position stapling and optional hole punching.
Capacity: 3,000 sheets Paper size: B6–A3, SRA3 Paper weight: 52–300 g/m2 Staple capacity: 50 sheets (A3, B4); 100 sheets (A4, B5) without Z-folding Staple positions: Top, bottom, 2 staples, top slant Staple paper weight: 64–80 g/m2 Optional punch unit PU5050 available Dimensions (W x D x H): 806 x 730 x 980 mm Weight: 77 kg or less Power consumption: 100 W
Notes:
Cannot be installed with Finisher SR4150,Booklet Finisher SR4160,Copy Tray Type M42,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Mailbox CS4010,Cover Interposer Tray CI4040,Cooling Fan Unit Type M26,Output Jogger Unit Type M25

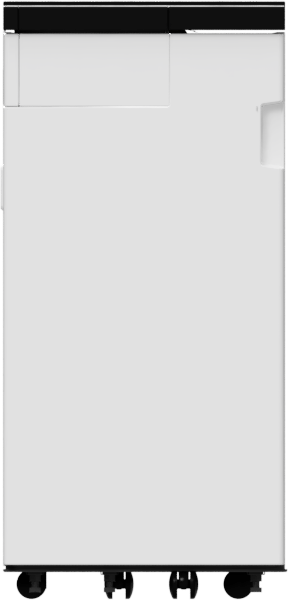

Multi-Folding Unit FD4020
For creating professional-looking output with a number of folding patterns.
Folding types: Single-sheet mode Z-fold, Half-fold, Letter fold-in, Letter fold-out, Double Parallel, Gate-fold Paper weight: 64–105 g/m2 Multiple-sheet mode Half-fold, Letter fold-in, Letter fold-out—up to 3 sheets Paper weight: 64–80 g/m2 Paper size: A4, B4, A3 (Z-fold) B5, A4, B4, A3, SRA3, SRA4 (Half fold) B5, A4, B4, A3 (Letter-fold, Double parallel-fold, Gate-fold) Dimensions (W x D x H): 470 x 730 x 980 mm Weight: 92 kg Power consumption: 240 W
Notes:
Cannot be installed with Multi-Folding Unit FD4010,Copy Tray Type M42
One of the following must also be selected: Finisher SR4140,Booklet Finisher SR4160,Finisher SR4150

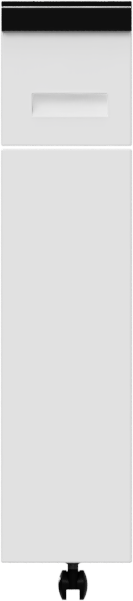

Multi-Folding Unit FD4010
For creating professional-looking output with a number of folding patterns.
Folding types: Single-sheet mode Z-fold, Half-fold, Letter fold-in, Letter fold-out Paper weight: 64–105 g/m2 Multiple-sheet mode Letter fold-in, Letter fold-out—up to 3 sheets Paper weight: 64–80 g/m2
Dimensions (W x D x H): 209 x 730 x 980 mm Weight: 45 kg or less Power consumption: 60 W or less
Notes:
Cannot be installed with Multi-Folding Unit FD4020,Cover Interposer Tray CI4050,Copy Tray Type M42
One of the following must also be selected: Finisher SR4150,Booklet Finisher SR4160,Finisher SR4140

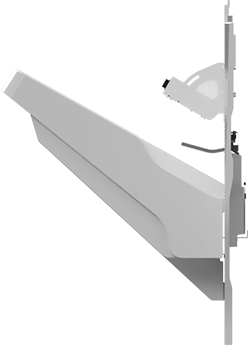

Copy Tray Type M42
A basic tray for printed and copied output when no advanced finishing—including stapling, hole punching, folding, or booklet making—is required. Output is delivered face down in a neat stack.
Capacity: 500 sheets Paper size: A6–13” x 19.2” Custom size: 90–330.2 mm x 139.7–487.7 mm Paper weight: 52.3–360 g/m2 Dimensions (W x D x H): 350 x 513 x 192 mm Weight: 2.2 kg or less
Notes:
Cannot be installed with Finisher SR4150,Booklet Finisher SR4160,Finisher SR4140,Multi-Folding Unit FD4020,Multi-Folding Unit FD4010,Cover Interposer Tray CI4050,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Mailbox CS4010,Cover Interposer Tray CI4040,Cooling Fan Unit Type M26,Output Jogger Unit Type M25,Punch Unit PU5050 NA,Punch Unit PU5050 EU,Punch Unit PU5050 SC,Cooling Fan Unit Type M31
Punch Unit PU3090 NA
Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
Paper size: 2-hole punch A5 SEF–A3 SEF, HLT–DLT SEF A5–A4 LEF, HLT LEF, LT LEF Note: A4 SEF and A5 LEF are not supported with 2 hole punch. 3-hole punch B4 SEF, A3 SEF, DLT SEF A4 LEF, B5 LEF, LT LEF Paper weight: 52–256 g/m2 Weight: 2 kg
Notes:
Cannot be installed with Punch Unit PU3090 EU,Punch Unit PU3090 SC,Finisher SR4140,Copy Tray Type M42,Cover Interposer Tray CI4050,Punch Unit PU5050 NA,Punch Unit PU5050 EU,Punch Unit PU5050 SC,Cooling Fan Unit Type M31
One of the following must also be selected: Booklet Finisher SR4160,Finisher SR4150
Punch Unit PU3090 EU
Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
Paper size: 2-hole punch A5 SEF–A3 SEF, HLT–DLT SEF A5–A4 LEF, HLT LEF, LT LEF Note: A4 SEF and A5 LEF are not supported with 2 hole punch. 4-hole punch B4 SEF, A3 SEF, DLT SEF A4 LEF, B5 LEF, LT LEF Paper weight: 52–256 g/m2 Weight: 2 kg
Notes:
Cannot be installed with Punch Unit PU3090 NA,Punch Unit PU3090 SC,Finisher SR4140,Copy Tray Type M42,Cover Interposer Tray CI4050,Punch Unit PU5050 NA,Punch Unit PU5050 EU,Punch Unit PU5050 SC,Cooling Fan Unit Type M31
One of the following must also be selected: Finisher SR4150,Booklet Finisher SR4160
Punch Unit PU3090 SC
Installed in a finisher of an MFP to enable automatic 4-hole punching of pages.
Paper size: A5 SEF–A3 SEF, HLT–DLT SEF A5–A4 LEF, HLT LEF, LT LEF Paper weight: 52–256 g/m2 Weight: 2 kg
Notes:
Cannot be installed with Punch Unit PU3090 NA,Punch Unit PU3090 EU,Finisher SR4140,Copy Tray Type M42,Cover Interposer Tray CI4050,Punch Unit PU5050 NA,Punch Unit PU5050 EU,Punch Unit PU5050 SC,Cooling Fan Unit Type M31
One of the following must also be selected: Finisher SR4150,Booklet Finisher SR4160
Punch Unit PU5050 NA
Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
Notes:
By choosing this option the Finisher SR4140 will be added to the configuration.
Cannot be installed with Punch Unit PU5050 EU,Punch Unit PU5050 SC,Finisher SR4150,Booklet Finisher SR4160,Copy Tray Type M42,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Mailbox CS4010,Cover Interposer Tray CI4040,Cooling Fan Unit Type M26,Output Jogger Unit Type M25
Punch Unit PU5050 EU
Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
Notes:
By choosing this option the Finisher SR4140 will be added to the configuration.
Cannot be installed with Punch Unit PU5050 NA,Punch Unit PU5050 SC,Finisher SR4150,Booklet Finisher SR4160,Copy Tray Type M42,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Mailbox CS4010,Cover Interposer Tray CI4040,Cooling Fan Unit Type M26,Output Jogger Unit Type M25
Punch Unit PU5050 SC
Installed in a finisher of an MFP to enable automatic 4-hole punching of pages.
Notes:
By choosing this option the Finisher SR4140 will be added to the configuration.
Cannot be installed with Punch Unit PU5050 EU,Punch Unit PU5050 NA,Finisher SR4150,Booklet Finisher SR4160,Copy Tray Type M42,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Mailbox CS4010,Cover Interposer Tray CI4040,Cooling Fan Unit Type M26,Output Jogger Unit Type M25

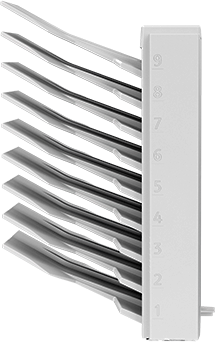

Mailbox CS4010
Provides individual bins for separate users or jobs. Can be configured with a mainframe or finisher.
Number of bins: 9 Capacity: 100 sheets per bin Paper size: A5–A3 Paper weight: 60–128 g/m2 Dimensions (W x D x H): 540 x 600 x 660 mm Weight: 15 kg or less Power consumption: 48 W or less
Notes:
Cannot be installed with Cover Interposer Tray CI4040,Finisher SR4140,Copy Tray Type M42,Cover Interposer Tray CI4050,Punch Unit PU5050 NA,Punch Unit PU5050 EU,Punch Unit PU5050 SC,Cooling Fan Unit Type M31
One of the following must also be selected: Finisher SR4150,Booklet Finisher SR4160

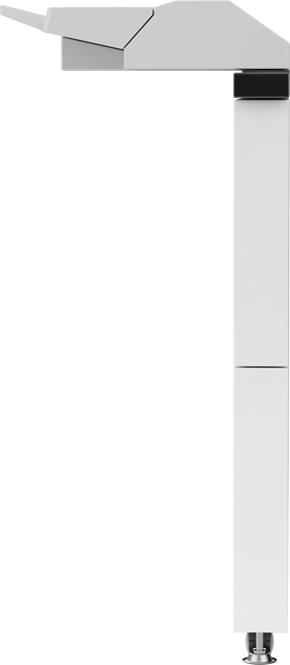

Cover Interposer Tray CI4040
Allows pre-printed covers and inserts to be easily fed into the finishing workflow from a single source. Eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals.
Note: Supported paper specifications are determined by the attached mainframe.
Capacity: 200 sheets (measured with a paper thickness of 0.12 mm) Paper size: A5–A3 Paper weight: 64–216 g/m2 Original set position: Centre Original position (normal feed, saddle stitch): Face up Dimensions (W x D x H): 500 x 600 x 600 mm Weight: 12 kg or less Power consumption: 43 W or less
Notes:
Cannot be installed with Mailbox CS4010,Finisher SR4140,Copy Tray Type M42,Cover Interposer Tray CI4050,Punch Unit PU5050 NA,Punch Unit PU5050 EU,Punch Unit PU5050 SC,Cooling Fan Unit Type M31
One of the following must also be selected: Finisher SR4150,Booklet Finisher SR4160

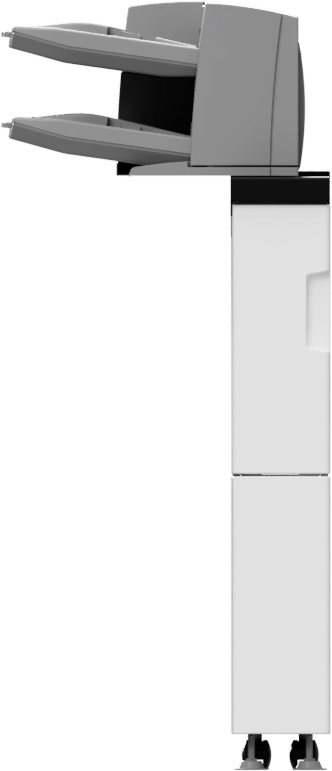

Cover Interposer Tray CI4050
Allows pre-printed covers and inserts to be easily fed into the finishing workflow from two sources. Eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals.
Capacity: 400 sheets (2 trays x 200 sheets) Paper size: A5–13" x 19.2" Paper weight: 64–216 g/m2 Original set position: Centre Original position: Face up–starts printing from top sheet Dimensions (W x D x H): 540 x 730 x 1,270 mm Weight: 45 kg or less Power consumption: 84 W or less
Notes:
By choosing this option the Finisher SR4140 will be added to the configuration.
Cannot be installed with Multi-Folding Unit FD4010,Finisher SR4150,Booklet Finisher SR4160,Copy Tray Type M42,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Mailbox CS4010,Cover Interposer Tray CI4040,Cooling Fan Unit Type M26,Output Jogger Unit Type M25
Cooling Fan Unit Type M26
Installed in a finisher to reduce the occurrence of blocking on jobs printed with high toner coverage.
Notes:
By choosing this option the Output Jogger Unit Type M25 will be added to the configuration.
Cannot be installed with Finisher SR4140,Copy Tray Type M42,Cover Interposer Tray CI4050,Punch Unit PU5050 NA,Punch Unit PU5050 EU,Punch Unit PU5050 SC,Cooling Fan Unit Type M31
Cooling Fan Unit Type M31
Installed in a finisher to reduce the occurrence of blocking on jobs printed with high toner coverage.
Notes:
By choosing this option the Finisher SR4140 will be added to the configuration.
Cannot be installed with Finisher SR4150,Booklet Finisher SR4160,Copy Tray Type M42,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Mailbox CS4010,Cover Interposer Tray CI4040,Cooling Fan Unit Type M26,Output Jogger Unit Type M25
Output Jogger Unit Type M25
A hardware component for finishers to jog paper output into a tidy position on the output tray, making it easy to collect, sort, and stack large print jobs.
Paper size: B5–SRA3 Shift capacity: 20 sheets Paper weight: 52–300 g/m2 Dimensions (W x D x H): 143 x 539 x 218 mm Weight: 2 kg or less Power consumption: 15 W or less
Notes:
One of the following must also be selected: Finisher SR4150,Booklet Finisher SR4160
Cannot be installed with Finisher SR4140,Copy Tray Type M42,Cover Interposer Tray CI4050,Punch Unit PU5050 NA,Punch Unit PU5050 EU,Punch Unit PU5050 SC,Cooling Fan Unit Type M31
Fax Option Type M42
Enables fax services: 33.6 kbps, approximately 2 second transmission speed, standard JBIG, and standard 320-page memory.
Includes standard Internet Fax (T.37), LAN fax, IP-Fax (T.38), Fax forwarding to email, and Paperless fax function.
G3 Interface Unit Type M42
Additional G3 line. Up to two units can be installed.
Notes:
By choosing this option the Fax Option Type M42 will be added to the configuration.
Fax Connection Unit Type M42
Enables users to send and receive faxes on a sub-MFP via a fax-enabled main MFP. This option has to be installed in both the main MFP and sub-MFP(s) needing remote fax. Supports max 6 sub-connections.
Notes:
By choosing this option the Fax Option Type M42 will be added to the configuration.
Fax Memory Unit Type M26
64 MB additional memory that increases fax memory to 4,800 pages and fax resolution to 400 x 400 dpi.
Notes:
By choosing this option the Fax Connection Unit Type M42 will be added to the configuration.
PostScript 3 Unit Type M42
Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex colour and PDF files.
Copy Connector M25
Allows two mainframes to be connected for simultaneous copying of the same job.
XPS Direct Print Option Type M42
Allows users to print XPS format directly from the printer, without using an XPS-based driver.
IPDS Unit Type M42
Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.
File Format Converter Type M19
Allows users to save copy and print jobs stored on the document server to a computer.
OCR Unit Type M13
Scans and creates searchable PDF files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.
DataOverwriteSecurity Unit Type M19
Erases the temporary data on the hard disk drive. For customers who require ISO 15408 certification prior to the printer or MFP system being IEEE 2600.1 certified.
Optional Counter Interface Unit Type M12
Used with external third party counting devices for accounting and charge-back purposes.
IEEE 1284 Interface Board Type M19
Allows users of older PC technology to connect to the latest printers and MFPs and access advanced printing features.
Notes:
Cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19,File Format Converter Type M19,Device Server Option Type M37
IEEE 802.11a/g/n Interface Unit Type M19
Enables WiFi connectivity and wireless printing.
Notes:
Cannot be installed with File Format Converter Type M19,Device Server Option Type M37,IEEE 1284 Interface Board Type M19
Device Server Option Type M37
An interface board used to add an extra Ethernet port to the device. Once installed, users can connect two Ethernet cables simultaneously—one to the device's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option.
Notes:
Cannot be installed with IEEE 802.11a/g/n Interface Unit Type M19,IEEE 1284 Interface Board Type M19,File Format Converter Type M19
Unicode Font Package for SAP 1 Licence
Supports multilingual data without restrictions.
Unicode Font Package for SAP 10 Licence
Supports multilingual data without restrictions.
NFC Card Reader Type M42
Ricoh card reader that supports authentication via Near Field Communication (NFC) technology. It can be used with Ricoh devices that are equipped with the 10.1" Smart Operation Panel that have standard authentication embedded.
Notes:
Cannot be installed with Smart Card Reader Built-in Unit Type M19,External Keyboard Bracket Type M25
Smart Card Reader Built-in Unit Type M19
A plastic card reader cover that conceals the card reader and its cabling. A card reader is not included.
Notes:
Cannot be installed with NFC Card Reader Type M42,External Keyboard Bracket Type M25
External Keyboard Bracket Type M25
Used for attaching an external keyboard to the mainframe.
Notes:
Cannot be installed with NFC Card Reader Type M42,Smart Card Reader Built-in Unit Type M19
Standard inclusions
10.1” Smart Operation Panel
220-sheet SPDF
2,500-sheet tandem tray + 2 x 550-sheet trays
100-sheet bypass tray
PostScript3
640 GB HDD
Current configuration

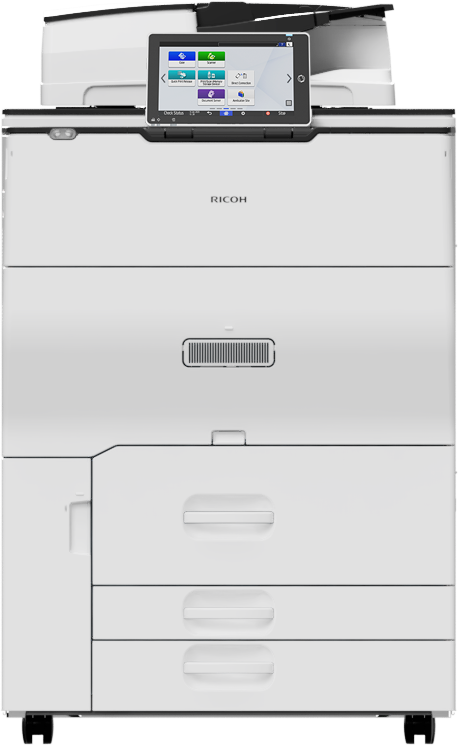

IM C6500
750 mm x880 mm x1225 mm (W x D x H)
250 kg
