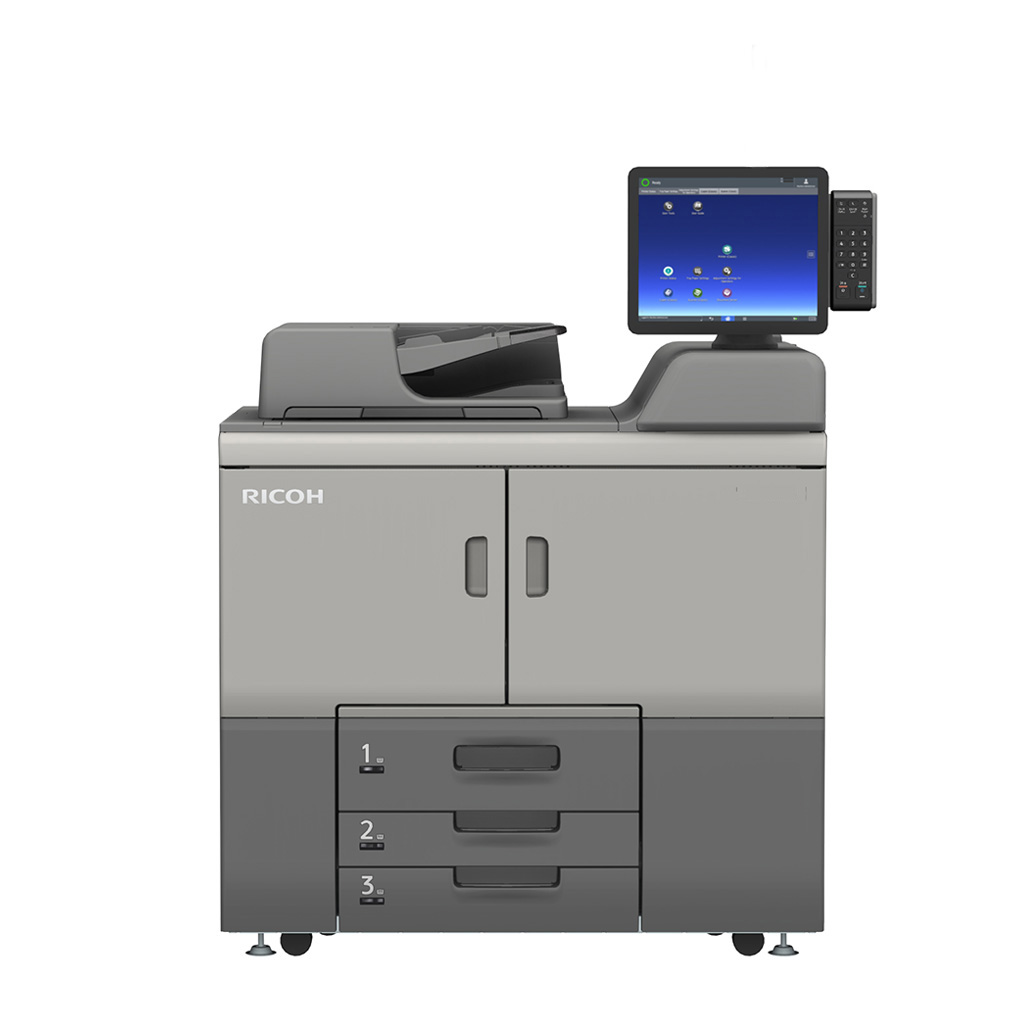

The Pro 8300S is a high-volume, black and white digital production printing device, which provides print, copy, and scan functionality as standard.
It has a print speed of 96 ppm, comes with a GWNX controller as standard, and can be upgraded by adding the optional Fiery EB-35 controller.
The Pro 8300S supports paper sizes of up to 13” x 19.2”, a maximum paper weight of 350 g/m2, and wide range of special media including envelopes and No Carbon Required (NCR) paper.
It also comes with various technology enhancements and mechanical innovations that provide improved performance, better media handling, versatile finishing options, and greater usability.
The Pro 8300S is targeted at school and general office customers because of its support for new slimline finishers that give it a smaller overall system size.
LCT RT5130
Optional Large Capacity Tray accommodates paper sizes up to A4 and significantly increases the capacity of the device.
Configuration: Console type Capacity: 5,000 sheets (1,100 sheets x 2 trays, 2,800 sheets x 1 tray)
Line speed: Feeding 555 mm/s—Type A 736 mm/s—Type B 985 mm/s—Type C Processing, Shifting 432 mm/s—Type A 500 mm/s—Type B 640 mm/s—Type C
Paper size: A4, B5, A5 Oversize paper: 305 x 230 mm, needs to be set in SP Mode Paper weight: 52.3–216 g/m2 (Trays 4 and 5); 52.3–163 g/m2 (Tray 6) Air assisted paper feed: Not available Tray security lock: Supported with all trays Note: ABUS lock T84MB (20 mm) is recommended. Power source: From mainframe Power consumption: 210 W Dimensions (W x D x H): 540 x 730 x 1,000 mm Weight: 106 kg or less
Notes:
Cannot be installed with LCT RT5110,Vacuum-Feed LCT RT5120,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Banner Sheet Tray Type S9,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,Multi-Bypass Tray BY5020
LCT RT5110
Optional Large Capacity Tray accommodates paper sizes up to 13" x 19.2" and significantly increases the capacity of the device.
Configuration: Console type Capacity: 4,400 sheets Paper size: A5–13" x 19.2" Custom size: 100–330.2 x 139.7–487.7 mm Paper weight : 52.3–256 g/m2 (Trays 4 and 6); 52.3–360 g/m2(Tray 5) Note: Some media over 301 g/m2 can be supported but the vacuum-feed LCT RT5120 is recommended for media heavier than 301 g/m2. Air-assisted paper feed: Supported with all trays Active tray indicator LED: Supported Power source: From mainframe Dimensions (W x D x H): 865 x 730 x 1,000 mm Weight: 185 kg or less
Notes:
Cannot be installed with LCT RT5130,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9
Vacuum-Feed LCT RT5120
Optional Large Capacity Tray significantly increasing the capacity of the device. This option features a vacuum-feed mechanism for excellent paper feeding accuracy.
Capacity: 4,400 sheets (2 x 2,200 sheet trays); 2,200 sheets with Vacuum-Feed Banner Sheet Tray Type S9 attached Paper size: A5–13" x 19.2" Custom size: 100–330.2 mm x 139.7–487.7 mm Paper weight: 52–470 g/m² Note: Supported paper weight depends on mainframe. Paper transfer method: Air pick Active tray indicator LED: Supported Dimensions (W x D x H) : 1,054 x 730 x 1,000 mm; 1,290 x 730 x 1,000 mm with Vacuum-Feed Banner Sheet Tray Type S9 attached Weight: 220 kg or less; 227 kg or less with Vacuum-Feed Banner Sheet Tray Type S9 attached Power source: 220–240 V Power consumption: 1,000 W or less
Notes:
Cannot be installed with LCT RT5130
Bridge Unit BU5010
Need to be attached between LCTs when more than 1 Vacuum-Feed LCT RT5120 units are configured to the system.
Paper size: A5–13" x 19.2" Paper weight: 52–400 g/m2 Note: Paper weight support depends on the mainframe. Dimensions (W x D x H): 330 x 730 x 1,000 mm Weight: 40 kg or less
Vacuum-Feed Banner Sheet Tray Type S9
Enables feeding of up to 700 mm banner sheet pages for a wider variety of applications. This option is attached to the upper tray of the Vacuum-Feed LCIT RT5150.
Capacity: 730 sheets Paper size: 210–330.2 mm x 420–700 mm Paper weight: 52–300 g/m² Note: Supported paper weight depends on mainframe. Power source: From LCT Dimensions (W x D x H): 1,290 x 730 x 1,000 mm—when attached to LCT; 1,290 x 730 x 1,302 mm—with cover open Weight: 7 kg or less
Notes:
By choosing this option the Vacuum-Feed LCT RT5120 will be added to the configuration.
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,LCT RT5130,LCT RT5110,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
Multi-Bypass Tray BY5020
Feeds up to 500 sheets of uncoated paper stocks for expanded system capacity and document output types.
Capacity: 500 sheets Paper size: A5–13" x 19.2" Custom size: 100 x 330.2 x 139.7 x 487.7 mm Paper weight: 52–216 g/m² Power source: From mainframe Paper volume sensors: In 4 steps, near end 0%, 50%, 100% Dimensions (W x D x H): 690 x 561 x 210 mm Weight: 20 kg or less
Notes:
One of the following must also be selected: Vacuum-Feed LCT RT5120 and Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,LCT RT5110
Cannot be installed with LCT RT5130
Multi-Bypass Banner Sheet Tray Type S9
Extender for Multi-Bypass Tray BY5020 to accommodate oversize prints up to 700 mm in size and up to 216 g/m2 in weight.
Note: SR5000 Series Output Tray For Banner Sheet Type S6 is required for banner sheet output, as this option doesn’t include an output tray for finisher.
Capacity: 500 sheets Paper size: A5–A3, 13” x 19.2” Custom size: 100–330.2 x 139.7–700 mm Note: Simplex printing up to 1,260 mm supported when sheets are fed individually. Paper weight: 52.3–216 g/m² Dimensions (W x D x H): 1,090 x 561 x 210 mm Weight: 9.5 kg or less
Notes:
By choosing this option the Multi-Bypass Tray BY5020 will be added to the configuration.
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,LCT RT5130,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9
Required to configure the Multi-Bypass Tray BY5020 with the Vacuum-Feed LCIT RT5150.
Notes:
By choosing this option the Vacuum-Feed LCT RT5120,Multi-Bypass Tray BY5020 will be added to the configuration.
Cannot be installed with LCT RT5130,LCT RT5110,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11,Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000
A3/11"x17" Tray Unit TK5020
Converts the standard paper input tray from a tandem A4 tray to an A3 tray.
Capacity: 1,000 sheets Paper size: A4, A3, B4 Paper weight : 52.3–216 g/m2 Dimensions (W x D x H): 490 x 530 x 175 mm Weight: 11 kg
ADF Double-feed Detection Kit Type S7
Detects double-feeding of scanned originals. Improves scanning speed to enhance the efficiency of high-volume scanning work essential to legal offices and educational institutes.
Decurl Unit DU5070
Reduces the natural paper curl that can occur, delivering sheets with optimal flatness. Ideal for applications that are frequently printed with high toner coverage on thin paper and paper with long grain.
Configuration: Optional internal module to be installed in the mainframe Paper size: 100 x 139.7 mm–330.2 x 487.7 mm Paper weight: 40–350 g/m2 Decurler functions: Pressure adjustment 3 steps—from operation panel Curl type Back curl, face curl—from operation panel Dimensions (W x D x H) : 71 x 509 x 181 mm Weight: 5 kg or less Power source: From mainframe Power consumption: 30 W or less
Shift Sort Tray SH5000
Enables the system to output copies as sets in sequential order. Each time the copies of one set or a job are delivered, the next copy is shifted to separate each set or job.
Line speed: 60–433 mm/s Stack capacity: 1,250 sheets (A4, B5), 500 sheets (A3 SEF, A5 LEF, B4 SEF), 100 sheets (A5 SEF, B6 SEF, A6 SEF) Paper size: A3~A5, B6 SEF, A6 SEF Paper weight: 52–216 g/m2 (Quality guaranteed only for 60-105 g/m2) Power source: From mainframe Power consumption: 20 W Dimensions (W x D x H): 400 x 600 x 480 mm Weight: 11 kg or less
Notes:
Cannot be installed with Finisher SR5110,Booklet Finisher SR5120,Finisher SR5090,Booklet Finisher SR5100,Multi-Folding Unit FD5020,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Banner Sheet Tray Type S9,Cover Interposer Tray Double-Feed Detection Kit Type S11,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,SR5000 Series Output Tray for Banner Sheet Type S6,Output Jogger Unit Type S11,Printer Controller EB-35
Cover Interposer Tray CI5040
Allows pre-printed covers and inserts to be easily fed into the finishing workflow from two sources. Eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals.
Capacity: 400 sheets (200 sheets x 2 trays) Paper height: 22 mm Paper size: A5–13" x 19.2" Custom size: 139.7–330.2 mm x 139.7–487.7 mm Available size: 139.7–1,260 mm (length), 100–330.2 mm (width) Paper weight: 52.3–350 g/m2 with plain paper; 105.1—350 g/m2 with coated paper Dimensions (W x D x H): 740 x 730 x 1,350 mm; width for connecting part is 330 mm Weight: 60 kg Power source: From mainframe Power consumption: 110 W, excluding peak consumption
Notes:
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
Cover Interposer Tray Double-Feed Detection Kit Type S11
When attached to the cover interposer, detects double feeds from the interposer.
Dimensions (W x D x H): 126 x 317 x 56 mm Weight: 0.4 kg
Notes:
By choosing this option the Cover Interposer Tray CI5040 will be added to the configuration.
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
Multi-Folding Unit FD5020
Provides automatic inline document folding with the ability to deliver folded output in several different patterns. Ideal for finished documents such as newsletters, brochures, menus, and marketing materials.
Folding types: Single sheet mode Z-fold, Half-fold/print inside, Half-fold/print outside, Letter fold-in/print inside, Letter fold-in/print outside, Letter fold-out, Double parallel/print inside, Double parallel/print outside, Gate fold/print inside, Gate fold/print outside Multiple sheet mode (up to 3 sheets) Half-fold/print inside, Half-fold/print outside, Letter fold-in/print inside, Letter fold-in/print outside, Letter fold-out Note: Coated paper is also supported.
Paper size: A4—13" x 19.2" Paper weight: 64–105 g/m2—single sheet mode 64–80 g/m2—multiple sheet mode
Power source: External, 220–240 V, 50–60 Hz Power consumption: 240 W or less Dimensions (W x D x H): 470 x 730 x 1,000 mm Weight: 92 kg or less
Notes:
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
Finisher SR5090
Provides multi-position stapling and optional hole punching.
Capacity: 3,000 sheets Paper size: A3–A5, B6, A6, SRA3, 13" x 19.2" Custom paper size: 90 x 139.7 mm–330.2 x 487.7 mm; 210 x 487.8–330.2 x 1,260 mm with banner paper Paper weight: 52–220 g/m2 Staple capacity: 65 sheets Staple positions: Top, bottom, 2 staple, top slant Staple position adjustment: Supported; two position staple only Staple paper weight: 52–105 g/m2 Optional punch unit PU3090 available Output jogger: Optional Dimensions (W x D x H): 657 x 730 x 980 mm with all extendable trays closed Weight: 38 kg or less Power consumption: 67 W
Notes:
Cannot be installed with Finisher SR5110,Booklet Finisher SR5120,Booklet Finisher SR5100,Shift Sort Tray SH5000,Multi-Folding Unit FD5020,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Banner Sheet Tray Type S9,Cover Interposer Tray Double-Feed Detection Kit Type S11,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,SR5000 Series Output Tray for Banner Sheet Type S6,Printer Controller EB-35
Finisher SR5110
Provides 100-sheet stapling and optional hole punching.
Paper size: Max. 330.2 x 487.7 mm (13" x 19.2"); min. 139.7 x 139.7 mm—without Z-fold 330.2 x 1,260 mm—with banner sheet output tray Max. 304 x 457 mm; min. 139.7 x 139.7 mm—with Z-fold
Paper weight: 40–350 g/m2 (upper tray), 40–470 g/m2 (lower tray)—without Z-fold 64–105 g/m2 —with Z-fold Note: Supported paper weight is dependent on the mainframe.
Staple capacity: 100 sheets (A4); 50 sheets (A3) Staple positions: top, bottom, 2 staple, top slant Staple paper weight: 64–80 g/m2 (without Z-fold); 64–105 g/m2 (with Z-fold) Optional punch unit PU5030 available Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option Type S6; 1,876 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the upper tray); 1,926 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the lower tray) Weight: 135 kg Power source: 220–240 V ±10%, 50/60 Hz Power consumption: 150 W
Notes:
Cannot be installed with Booklet Finisher SR5120,Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,Trimmer Unit TR5050,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
Booklet Finisher SR5100
Allows documents to be professionally finished as saddle-stitched booklets with minimal effort. Provides 65-sheet stapling and optional hole punching.
Capacity: 2,000 sheets Paper size: A3–A5, B6, A6, SRA3, 13" x 19.2" Custom paper size: 90 x 139.7 mm–330.2 x 487.7 mm; 210 x 487.8–330.2 x 1,260 mm for banner paper Paper weight: 52–220 g/m2 Staple capacity: 65 sheets Staple positions: Top, bottom, 2 staple, top slant Staple position adjustment: Supported; two position staple only Staple paper weight: 52–105 g/m2 (plain paper); 81.4–104.7 g/m2 (glossy/matte paper) Saddle stitch staple: 20 sheets (80-page booklet) Optional punch unit PU3090 available Output jogger: Optional Dimensions (W x D x H): 657 x 730 x 980 mm with all extendable trays closed Weight: 53 kg or less Power consumption: 67 W
Notes:
Cannot be installed with Finisher SR5110,Booklet Finisher SR5120,Finisher SR5090,Shift Sort Tray SH5000,Multi-Folding Unit FD5020,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Banner Sheet Tray Type S9,Cover Interposer Tray Double-Feed Detection Kit Type S11,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,SR5000 Series Output Tray for Banner Sheet Type S6,Printer Controller EB-35
Booklet Finisher SR5120
Creates flat-fold, saddle-stitched booklets, and folded unstapled booklets with a professional appearance and no manual intervention. Comes with dual shift trays for ‘non-stop delivery.’ Punch option is available.
Capacity: 3,500 sheets (dual shift tray)
Paper size: Without Z-fold Max. 330.2 x 487.7 mm (13" x 19.2"), min. 139.7 x 139.7 mm 330.2 x 1,260 mm—with banner sheet output tray With Z-fold Max. 304 x 457 mm, min. 139.7 x 139.7 mm
Paper weight: Without Z-fold 40–350 g/m2 (upper tray), 40–470 g/m2 (lower tray) With Z-fold 64–105 g/m2 Note: Supported paper weight is dependent on the mainframe.
Staple capacity: 100 sheets (A4); 50 sheets (A3) Staple positions: top, bottom, 2 staple, top slant Staple paper weight: without Z-fold: 64–80 g/m2; with Z-fold: 64–105 g/m2 Saddle stitch staple: 30 sheets (120-page booklet) with 80 g/m2 paper Optional punch unit PU5030 available Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option Type S6; 1,876 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the upper tray); 1,926 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the lower tray) Weight: 160 kg Power consumption: 150 W
Notes:
Cannot be installed with Finisher SR5110,Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
Output Jogger Unit Type S11
A hardware component for finishers to jog paper output into a tidy position on the output tray, making it easy to collect, sort, and stack large print jobs.
Note: Supported paper specifications are determined by the attached mainframe.
Paper size: A3 SEF, B4 SEF, A4 SEF, A4 LEF, B5 LEF, A5 LEF, 12” x 18", 13” x 19.2” Dimensions (W x D x H): 169 x 539 x 203 mm—including jogger operating range Weight: 2 kg or less Power consumption: 15 W or less
Notes:
Cannot be installed with Finisher SR5110,Booklet Finisher SR5120,Shift Sort Tray SH5000,Multi-Folding Unit FD5020,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Vacuum-Feed Banner Sheet Tray Type S9,Cover Interposer Tray Double-Feed Detection Kit Type S11,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,SR5000 Series Output Tray for Banner Sheet Type S6,Printer Controller EB-35,Multi-Bypass Banner Sheet Tray Type S9,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,Punch Unit PU5030 NA
Trimmer Unit TR5050
Cuts the front edge of the book block after the book block is saddle stitched. Booklet Finisher SR5120 is required in order to attach this option.
Stacker full detection: Supported Limitless stack: Supported Note: This setting is not user configurable; it needs to be configured by a Ricoh service engineer. Power source: External, universal power supply, 100–240 V, 50 Hz Power consumption: 75 W—average; 250 W—maximum Dimensions (W x D x H): 1,115 x 591 x 555 mm Weight: 75 kg
Notes:
By choosing this option the Booklet Finisher SR5120 will be added to the configuration.
Cannot be installed with Finisher SR5110,Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
SR5000 Series Output Tray for Banner Sheet Type S6
Required for banner sheet output for selected Ricoh finishers and booklet finishers.
Capacity: 200 sheets (0.11mm/sheet) Paper size: width 210–330.2 mm, length 420–700 mm Paper weight: 52.3–300.0 g/m2
Notes:
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11,Shift Sort Tray SH5000
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Punch Unit PU5030 NA
Installed in a finisher of a printing device to enable automatic 2-hole or 3-hole punching of pages.
Number of punch: 2 or 3 holes interchangeable Punch registration: Supported; resist roller and side registration sensor Paper weight: 52–300 g/m2 Performance: Same as engine speed
Notes:
Cannot be installed with Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Punch Unit PU5030 EU
Installed in a finisher of a printing device to enable automatic 2-hole or 4-hole punching of pages.
Number of punch: 2 or 4 holes interchangeable Punch registration: Supported; resist roller and side registration sensor Paper weight: 52–300 g/m2 Performance: Same as engine speed
Notes:
Cannot be installed with Punch Unit PU5030 NA,Punch Unit PU5030 SC ,Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Punch Unit PU5030 SC
Installed in a finisher of a printing device to enable automatic 4-hole punching of pages.
Number of punch: 4 holes Punch registration: Supported; resist roller and side registration sensor Paper weight: 52–300 g/m2 Performance: Same as engine speed
Notes:
Cannot be installed with Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Punch Unit PU3090 NA
Installed in a finisher of an MFP to enable automatic 2-hole or 3-hole punching of pages.
Paper size: 2-hole punch A5 SEF–A3 SEF, HLT–DLT SEF A5–A4 LEF, HLT LEF, LT LEF Note: A4 SEF and A5 LEF are not supported with 2 hole punch. 3-hole punch B4 SEF, A3 SEF, DLT SEF A4 LEF, B5 LEF, LT LEF Paper weight: 52–256 g/m2 Weight: 2 kg
Notes:
Cannot be installed with Punch Unit PU3090 EU,Punch Unit PU3090 SC,Finisher SR5110,Booklet Finisher SR5120,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Banner Sheet Tray Type S9,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,Shift Sort Tray SH5000,Multi-Folding Unit FD5020,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,SR5000 Series Output Tray for Banner Sheet Type S6,Printer Controller EB-35
One of the following must also be selected: Finisher SR5090,Booklet Finisher SR5100
Punch Unit PU3090 EU
Installed in a finisher of an MFP to enable automatic 2-hole or 4-hole punching of pages.
Paper size: 2-hole punch A5 SEF–A3 SEF, HLT–DLT SEF A5–A4 LEF, HLT LEF, LT LEF Note: A4 SEF and A5 LEF are not supported with 2 hole punch. 4-hole punch B4 SEF, A3 SEF, DLT SEF A4 LEF, B5 LEF, LT LEF Paper weight: 52–256 g/m2 Weight: 2 kg
Notes:
Cannot be installed with Punch Unit PU3090 NA,Punch Unit PU3090 SC,Finisher SR5110,Booklet Finisher SR5120,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Banner Sheet Tray Type S9,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,Shift Sort Tray SH5000,Multi-Folding Unit FD5020,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,SR5000 Series Output Tray for Banner Sheet Type S6,Printer Controller EB-35
One of the following must also be selected: Finisher SR5090,Booklet Finisher SR5100
Punch Unit PU3090 SC
Installed in a finisher of an MFP to enable automatic 4-hole punching of pages.
Paper size: A5 SEF–A3 SEF, HLT–DLT SEF A5–A4 LEF, HLT LEF, LT LEF Paper weight: 52–256 g/m2 Weight: 2 kg
Notes:
Cannot be installed with Punch Unit PU3090 NA,Punch Unit PU3090 EU,Finisher SR5110,Booklet Finisher SR5120,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Banner Sheet Tray Type S9,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,Shift Sort Tray SH5000,Multi-Folding Unit FD5020,Trimmer Unit TR5050,Cover Interposer Tray CI5040,Cover Interposer Tray Double-Feed Detection Kit Type S11,Punch Unit PU5030 NA,Punch Unit PU5030 EU ,Punch Unit PU5030 SC ,SR5000 Series Output Tray for Banner Sheet Type S6,Printer Controller EB-35
One of the following must also be selected: Finisher SR5090,Booklet Finisher SR5100
Printer Controller EB-35
An external printer controller that provides fast processing speed, outstanding image quality, and time-saving workflow.
Notes:
Cannot be installed with Finisher SR5090,Booklet Finisher SR5100,Shift Sort Tray SH5000,Punch Unit PU3090 NA,Punch Unit PU3090 EU,Punch Unit PU3090 SC,Output Jogger Unit Type S11
PostScript 3 Unit Type S11
Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex colour and PDF files.
IPDS Unit Type S11
Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.
XPS Direct Print Option Type S11
Allows users to print XPS format directly from the printer, without using an XPS-based driver.
OCR Unit Type M13
Scans and creates searchable PDF files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.
Unicode Font Package for SAP 1 Licence
Supports multilingual data without restrictions.
Unicode Font Package for SAP 10 Licence
Supports multilingual data without restrictions.
IEEE 802.11a/g/n Interface Unit Type M19
Enables WiFi connectivity and wireless printing.
Media Identification Unit Type S3
Used for searching and registering media. Displays media options with similar printing setting characteristics that are already registered in the paper catalog and the customer paper list.
VM Card Type P18
Java Virtual Machine that supports the installation of embedded software applications.
Attention Light AL3000
Visually alerts operators about system status changes to prompt attention. Can be configured with a mainframe or finisher.
Dimensions (W x D x H) : 100 × 100 × 606 mm
Optional Counter Interface Unit Type M12
Used with external third party counting devices for accounting and charge-back purposes.
Standard inclusions
17" operation panel
Up to 13" x 19.2" paper size
Up to 350 g/m2 paper
700 mm banner paper
640 GB HDD
No Carbon Required (NCR) paper duplex printing
Current configuration
Pro 8300S
1141 mm x900 mm x1500 mm (W x D x H)
428 kg
